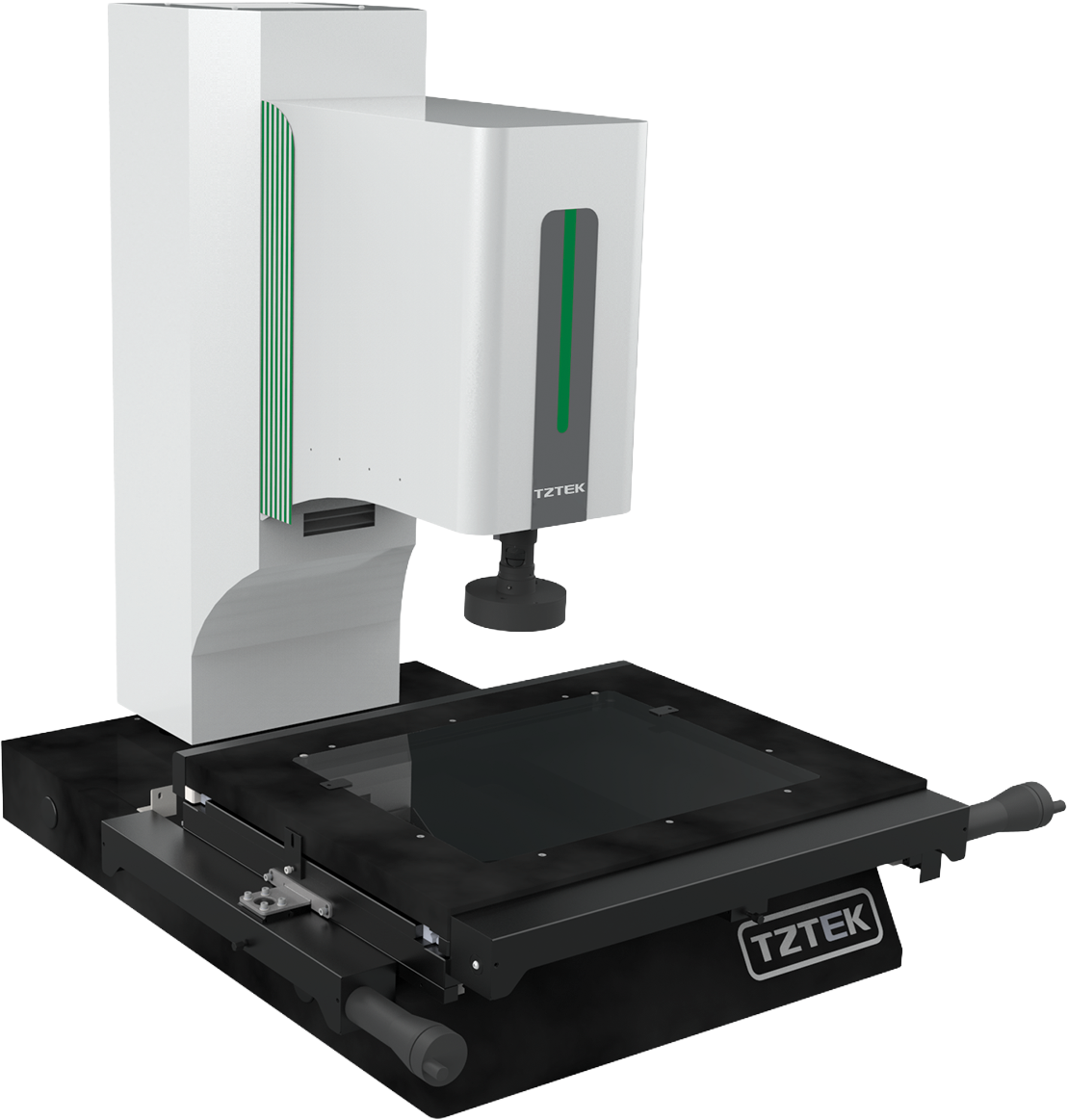

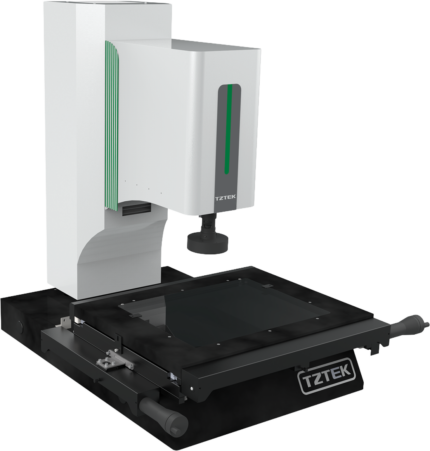

VMA Semi-auto Video Measuring Machine is easy to use and has report output function. It can measure points, lines, circles and other elements. It is suitable for the measurement of many kinds and small batches of products.

Features:-
– Manual zoom lens, magnification identified automatically with software
– Magnification 25-160x
– Programmed ring surface light, Profile light, etc
– Z axis with motor to automatic focusing, height measurement and lifting
– Auto-focusing, auto-illumination, automatic edge capturing
– Granite structure that provides high precision and stability
– Optional contact probe, coaxial light etc

Specification:-
Model: TZT-VMA4030
X/Y-Axis Travel: 400 x 300 mm
Load Capacity: 25 kg
Accuracy: ≤2.7+L/150 (µm) for X/Y-Axis; [L=Length in mm]
Z-Axis Travel: High Precision Linear Guide 200 mm with AUTO FOCUS features.
Resolution: 0.001 mm
Repeatability: 2µm
Working Distance: 90 mm
Illumination: Intelligent Programming Control 1 Ring 4 Divisions LED Cold Light (The luminance could be controlled and adjusted separately.)
CCD: High-Resolution Industrial Color CCD Camera
Magnification: 0.7X ~ 4.5X; Video Magnification: 50X – 324X (Electronic Position lens with 6 Intelligent Interval Steps Adjustment on PC)

Measuring software: VMA Version
– Basic geometrical measuring function
– Basic online SPC (Statistical Process Control)
– Lighting control / Edge detection.
– Customize Report Format Entry according to customer’s worksheet

Net Weight: 395 kg
Dimension (WxDxH): 720 x 980 x 1470mm
Power Supply: 220V ±10% (AC) 50/60Hz, 100W

Standard Accessories:
| Measuring Software | Color CCD Camera | Electronic Position Lens | Calibration Block |
| Image Card& controller | LED Illumination | Scales Transfer | Branded PC System |
| Operation Manual | Machine Table | Worktable
